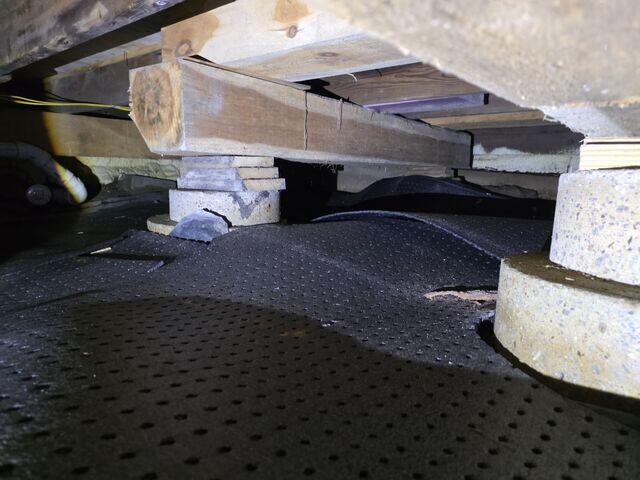

Wet Dirt Crawl Space
A previously installed crawl space liner served only as a temporary, surface-level measure to reduce groundwater intrusion. Because it did not address the underlying sources of moisture, humidity continued to accumulate within the space. This elevated moisture created ideal conditions for microbial growth, wood deterioration, and musty odors, which eventually migrated into the guest house.

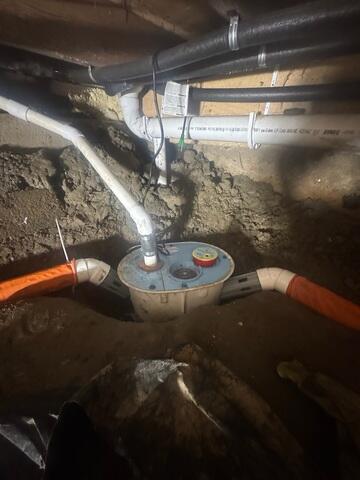

Dirt Crawl Space Sump Pump and Drainage
Our crew removed the deteriorating crawl space liner and regraded the soil to promote proper drainage. We then excavated a trench along the interior perimeter of the foundation walls to install the Star Pipe drainage system. Star Pipe is engineered to intercept and channel groundwater efficiently, directing it to the SmartSump. The SmartSump features a crawl‑space‑specific basin and components designed to manage moisture in low-clearance environments. Once collected, water is discharged safely away from the home through a designated exterior discharge line.

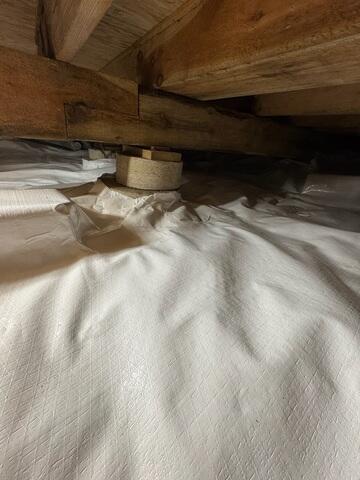

Crawl Space Encapsulation
Drainage matting was installed across the soil floor to establish a durable separation between the ground and the structure. This matting is engineered to channel groundwater intrusion toward the Star Pipe drainage system, which then directs collected water efficiently to the sump pump for removal. A CleanSpace vapor barrier was subsequently placed over the drainage matting and custom‑fit around all structural components, including support columns. This comprehensive encapsulation system significantly reduces moisture exposure within the crawl space. By controlling humidity and limiting vapor transmission, it helps prevent mold growth, wood decay, and poor air quality throughout the home.

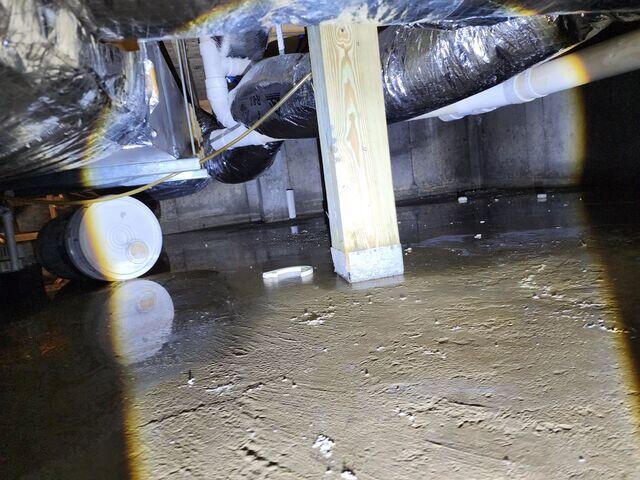

Flooded Concrete Crawl Space
The concrete crawl space section of the home was experiencing consistent water intrusion, often resulting in noticeable pooling across the surface. Given the concentration of essential utilities in this area, it was critical to implement measures that would prevent potential water-related damage and ensure the long‑term protection of the home's mechanical systems.

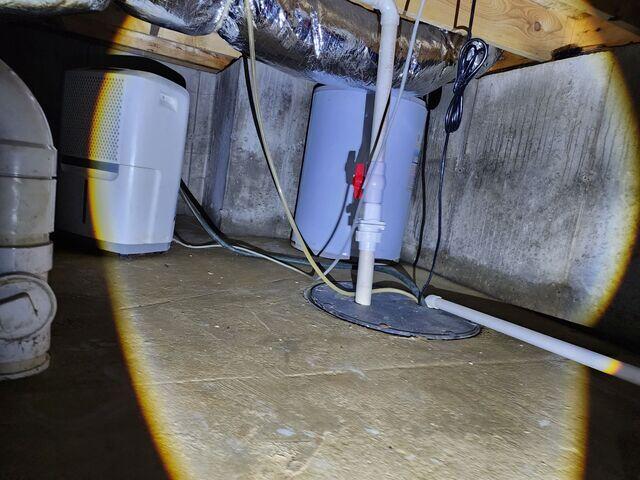

Failing Sump Pump
The previously installed sump pump in the crawl space was unable to effectively capture and discharge incoming water, resulting in recurring leakage and flooding throughout the area.

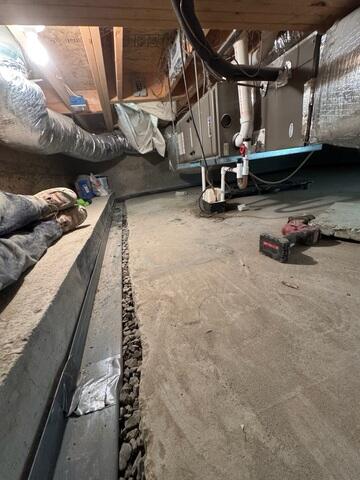

Crawl Space Drainage System
WaterGuard was installed along the interior perimeter of the crawl space to intercept and collect groundwater at its entry point, preventing it from penetrating into the occupied crawl space area. The system is positioned within a bed of clean, crushed stone to promote optimal drainage and ensure efficient conveyance of water to the sump pump system for removal.

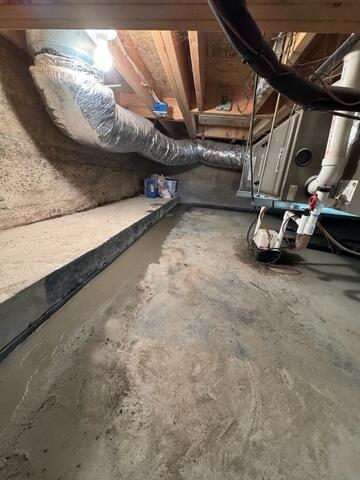

Crawl Space Drainage System Concreted
Once the drainage system was tested to verify proper water flow and performance, it was permanently secured in place by embedding it within fresh concrete along the foundation floor. This installation method restores the crawl space to a clean, uniform finish while maintaining full drainage functionality.

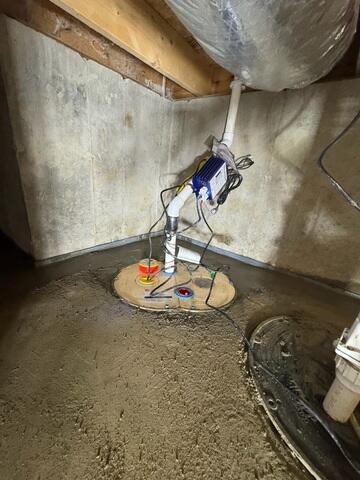

SuperSump Sump Pump
The SuperSump® sump pump system was installed in the concrete portion of the crawl space to provide dependable water management. The perimeter drainage system integrates directly with the pump basin, ensuring efficient collection and discharge of groundwater seepage. Additionally, the system is equipped with a WaterWatch® alarm, which provides early notification if water begins to rise within the sump liner-indicating a potential malfunction or obstruction that requires attention.
