Crawl Space Repair Photo Album: Failing Crawl Space Supports Repair in Melrose, MA

In Melrose, MA, the structure of a homeowner's garage floor was compromised due to an uneven and wet crawl space. This led to the failure of supporting cinderblocks. As seen in the photos, our team at Erickson Foundation Solutions resolved this issue by installing SmartJack, Drainage Matting, and CleanSpace products. The SmartJack system ensures stability, while the drainage matting and CleanSpace systems effectively manage moisture, offering a robust solution for preventing future structural issues.

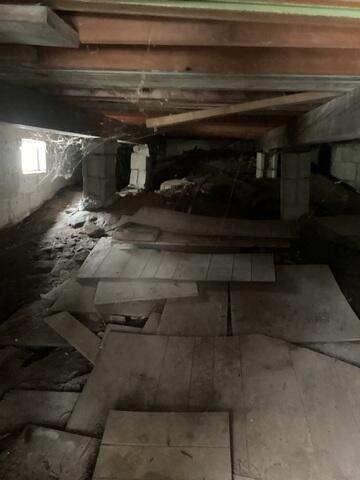

Failing Crawl Space

The moisture in the crawlspace led to the settlement and degradation of the cinderblocks, compromising their structural integrity. Consequently, this resulted in inadequate support for the garage above.

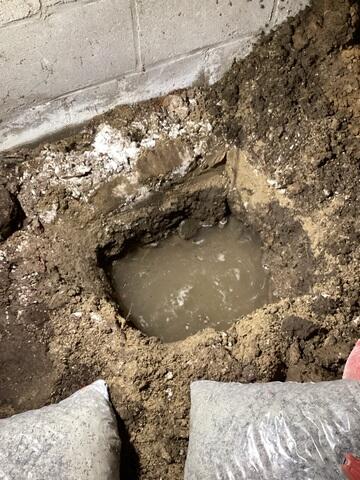

Footing Excavation

The crew cleared debris from the crawlspace and prepared for the SmartJack installation by excavating soil to establish footings. During this process, they discovered a high water table. To maintain a manageable and dry workspace, the crew implemented a temporary sump pump system, ensuring that work operations could proceed without interruption.

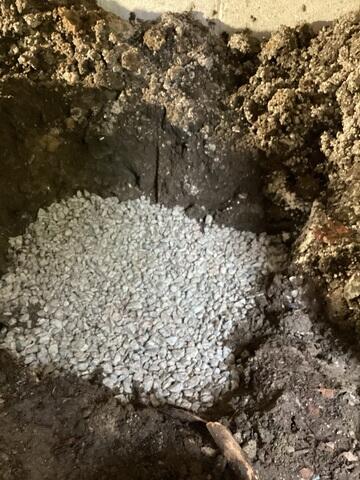

Footings with Crushed Stone

A layer of crushed stone was strategically placed at the base of the footing to ensure a stable foundation.

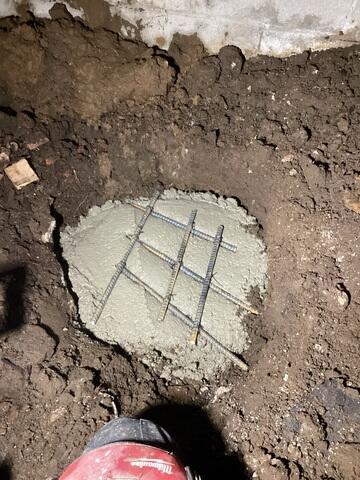

Concrete Footing with Rebar

Concrete was poured to establish the footing, with rebar embedded within to enhance structural support.

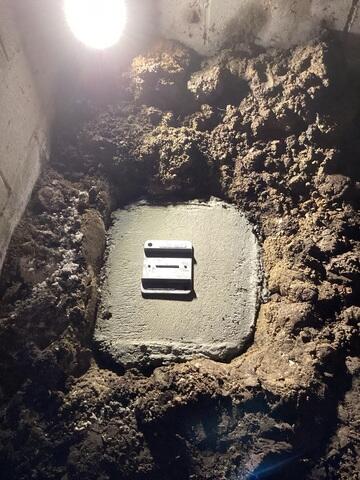

SmartJack Base

Additional concrete is poured and meticulously leveled to form the footings. Once the concrete has fully cured, the SmartJacks can be installed on these footings.

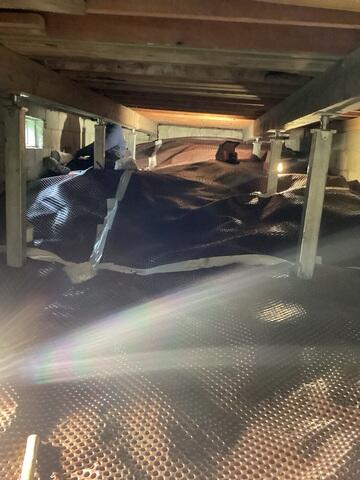

SmartJack Installation and Drainage Matting

The SmartJacks were positioned on the footings and connected to the main beams. This adjustable system allows for precise modifications to maximize stabilization and lift, thereby restoring the structural integrity of the garage above the crawlspace. Additionally, drainage matting was installed to prevent water accumulation in sections of the crawlspace, facilitating improved drainage back into the soil.

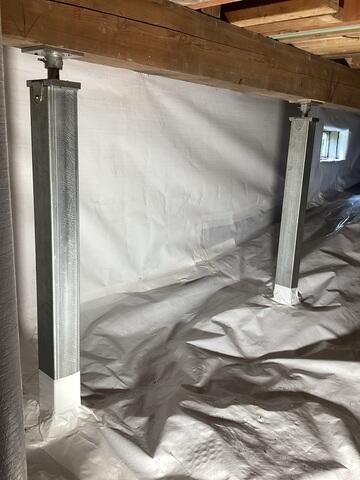

CleanSpace Vapor Barrier

We then encapsulated the crawlspace with our CleanSpace vapor barrier system. This system effectively prevents moisture infiltration, thereby reducing the risk of mold growth, wood rot, and elevated humidity levels. Additionally, it eliminates musty odors and enhances the overall air quality distributed throughout the home.
