Foundation Problems Photo Album: Retaining Wall Stabilization in Ipswich, MA

In Ipswich, MA, a homeowner noticed troubling cracks forming in their retaining wall, threatening the stability of a parking spot above. As you can see in the photos, we addressed this by installing the GeoLock Wall Anchor System®. The heavy-duty anchors securely stabilized the retaining wall and ensured the structure can support the weight overhead confidently. This solution not only restored the wall's strength but also preserved the home's property value, showcasing our dedication to permanent solutions.

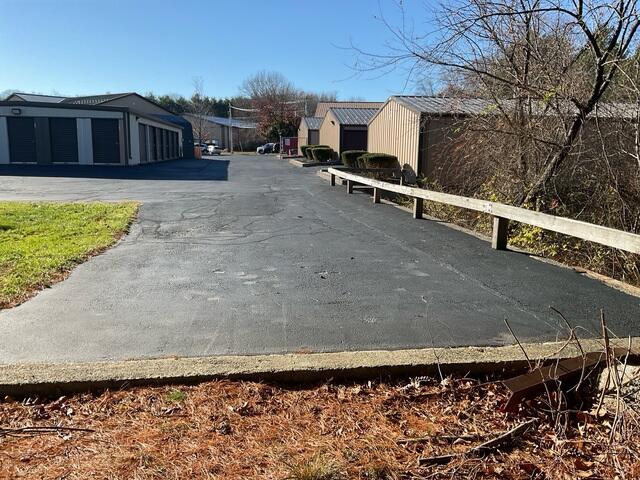

Unstable Parking Spot

This area was designated for heavy truck parking. The substantial weight of these vehicles, combined with the instability of the retaining wall, raised concerns about accelerated deterioration and the potential for a structural collapse.

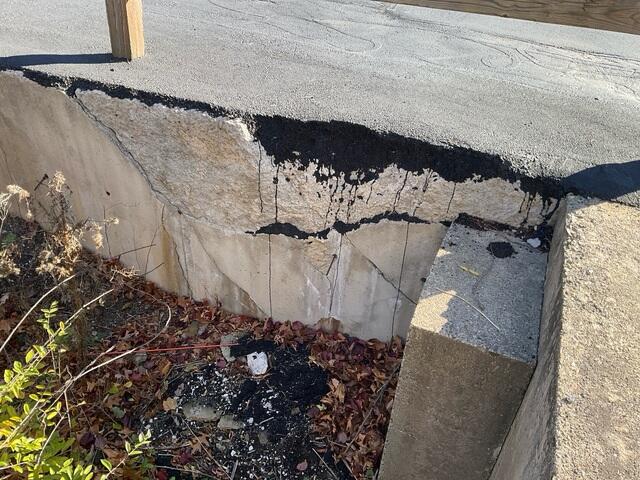

Cracked Retaining Wall

The significant cracking observed on the retaining wall was indicative of structural failure. Implementing a permanent solution was crucial to ensure the safety and stability of the structure, as well as the vehicles parked above it.

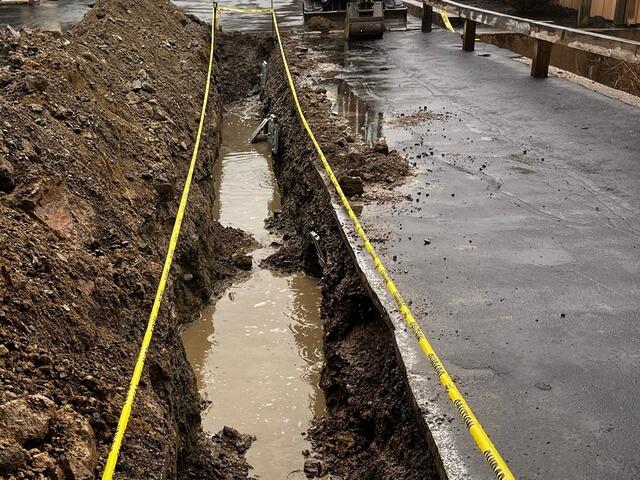

GeoLock Trench

To prevent the retaining wall from bowing outward and to stabilize it, we excavated asphalt, concrete, and soil from the center of the parking area to create a trench for the installation of GeoLock anchors.

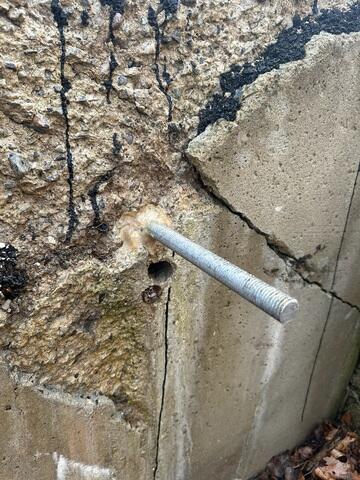

GeoLock Rods

GeoLock rods were inserted through the retaining wall and extended into the trenched area.

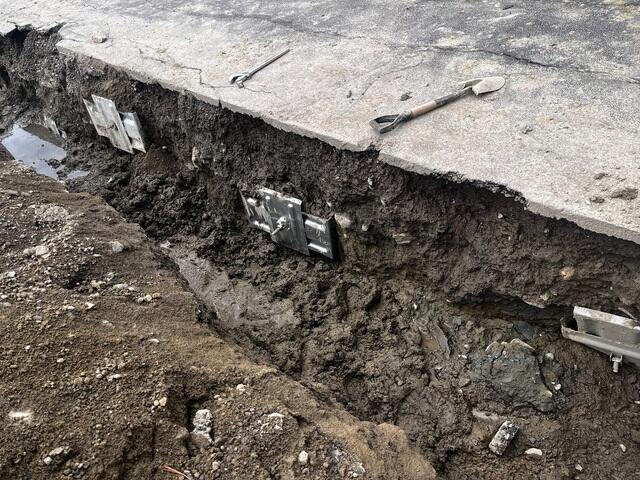

GeoLock Anchors

After the GeoLock rods are drilled into the trench, the GeoLock anchors are affixed to the rods and anchored into stable soil.

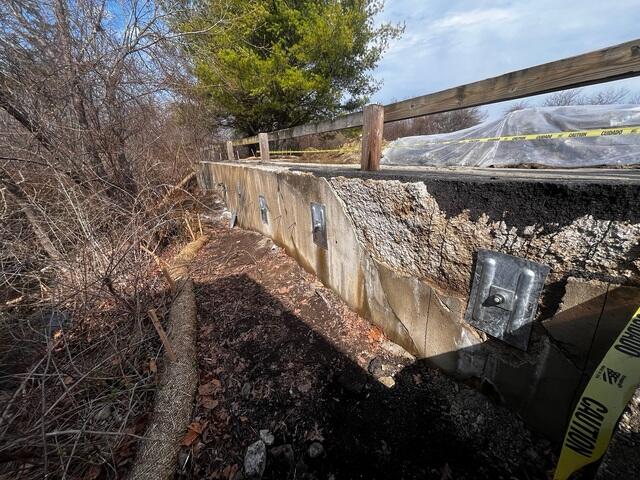

GeoLock Plates

Once the GeoLock anchors are installed, the GeoLock plates are secured and tightened, thereby stabilizing the wall and providing additional support capable of withstanding the weight of vehicles parked above.
