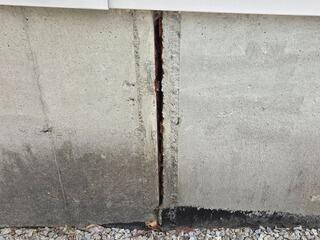

Widening Foundation Crack
Over time, separation developed at the joint between two poured concrete foundation wall sections. Our inspection determined this condition was the result of approximately 2.5 inches of differential settlement occurring along one side of the home. Left uncorrected, this ongoing movement would allow the gap to continue widening, compromising the structural integrity of the foundation and increasing the risk of further damage.

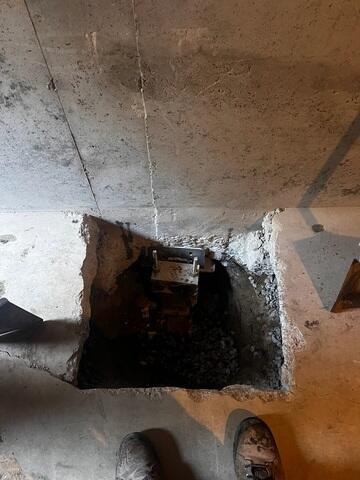

Push Pier Installation
Push piers were installed along the interior perimeter of the foundation to stabilize and correct the settlement. Each pier was hydraulically driven through unstable soils to reach competent, load‑bearing strata. Once proper bearing capacity was achieved, the piers were simultaneously pressurized to transfer the structural load and carefully lift the foundation toward its original elevation, providing long‑term stabilization and support.

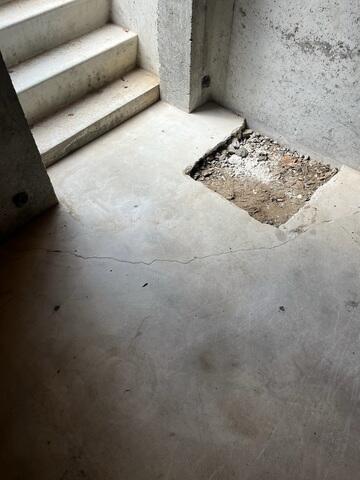

Push Pier Backfill
All excavated soil removed to expose the foundation footing was carefully returned, backfilled in controlled lifts, and compacted. This process restored proper soil density, eliminated voids beneath the foundation floor, and ensured uniform support to prevent future settlement or slab movement.

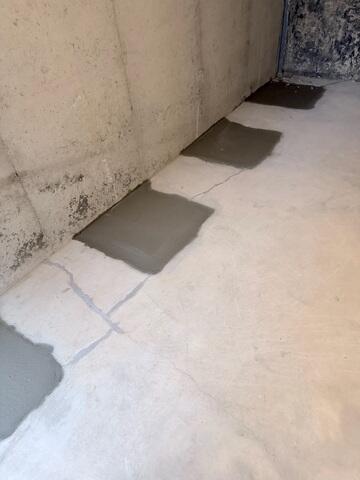

Concrete Restoration
The sections of concrete removed to facilitate push pier installation were properly restored using new concrete and finished flush to grade. This repair reestablished the integrity of the foundation floor, providing a smooth, level surface while maintaining full structural continuity.

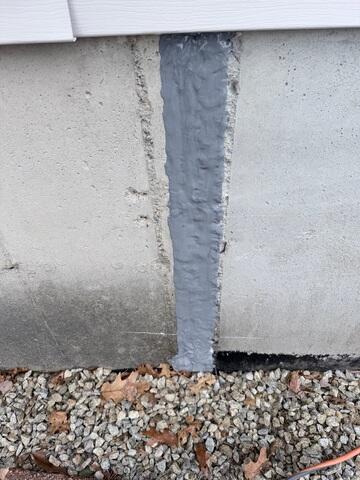

Foundation Crack Seal
Although the separation at the crack was significantly reduced following push pier installation, a professional crack sealant was applied to fully seal the joint. This repair prevents moisture intrusion into the foundation while providing additional reinforcement to the affected area, further protecting the foundation from deterioration and ensuring long‑term structural performance.
