Deteriorating Fieldstone Wall
The fieldstone foundation wall has experienced a gradual loss of structural integrity over time, as indicated by visible cracking between the stones and noticeable inward bowing of the wall.

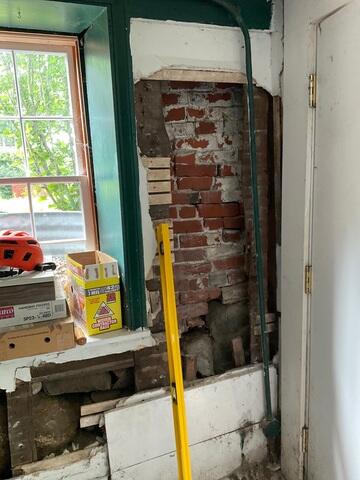

Brick Foundation Wall Topper Dislodging
The progressive deterioration of the fieldstone wall compromised its ability to support the overlying brick veneer, resulting in displacement and, in some areas, brick failure. This condition raised significant structural concerns, prompting the homeowner to seek a long-term, reliable solution to stabilize and restore the foundation.

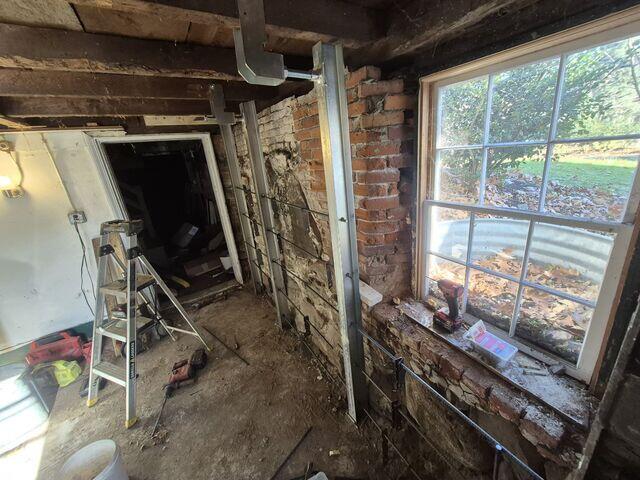

PowerBrace
PowerBrace™ steel I-beams were strategically installed along the foundation wall to arrest further inward deflection and provide structural stabilization. Each beam is mechanically anchored to the floor slab and mechanically fastened to the overhead floor joists, creating a rigid support system. To enhance the overall reinforcement, rebar is integrated within the PowerBrace system and tied into the auxiliary wall, ensuring added strength and cohesion once the concrete is placed and cured.

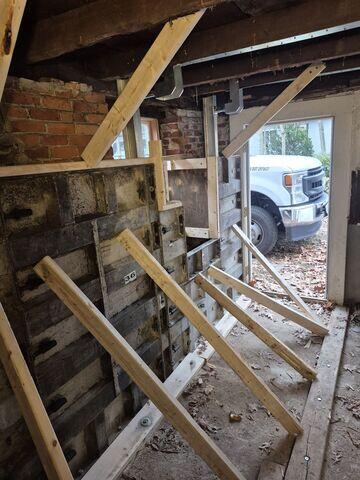

Auxiliary Wall Forms
Auxiliary wall formwork is constructed to define the dimensions and geometry of the new support wall. Temporary wooden bracing is strategically installed to secure the forms in position during concrete placement, ensuring structural alignment and maintaining the intended wall profile throughout the curing process.

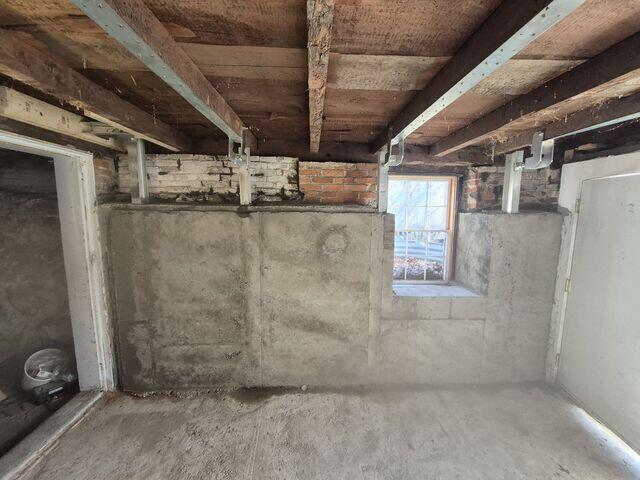

StableLock Auxiliary Wall
Concrete is placed within the formwork to create the auxiliary wall. During placement, mechanical vibration is applied to consolidate the concrete and eliminate air voids, ensuring optimal density and structural integrity. The top surface is then finished and leveled using a trowel to achieve proper elevation and alignment. After the concrete has fully cured, the formwork is removed, revealing the completed StableLock™ auxiliary wall system. The foundation wall is thereby fully stabilized, restoring the structural capacity and proper load distribution of the home.
