Main Beam Not Supporting Joist
The primary support beam was inadequately reinforced due to the absence of intermediate columns, resulting in noticeable deflection. This compromised its ability to properly support the floor joists, leading to excessive floor movement. The resulting bounce not only raised concerns about structural integrity but also caused discomfort for the homeowner.

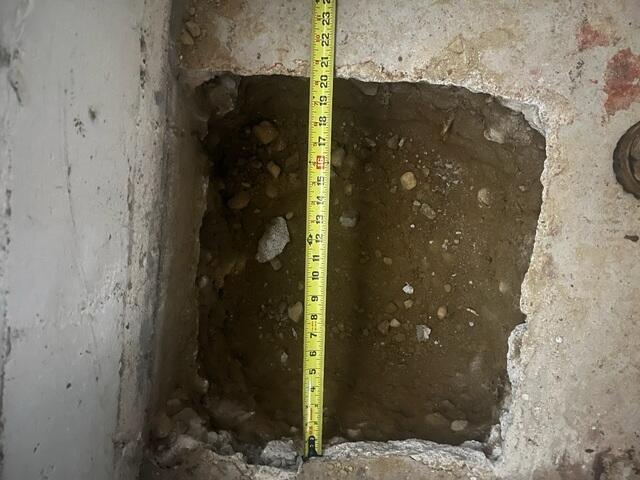

Concrete Removal for Footings
A section of the foundation slab was excavated to facilitate the installation of structural concrete footings.

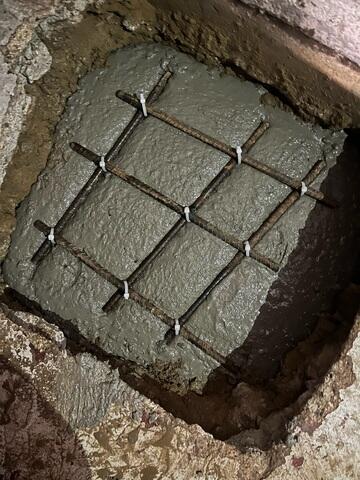

Concrete Footing with Rebar
Concrete was placed with embedded rebar to reinforce the structural integrity of the footings and ensure proper load distribution.

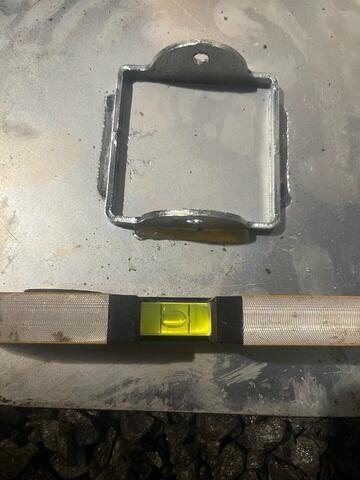

SmartJack Main Beam Base
The base plate of the SmartJack system was positioned on the newly formed concrete footings and precisely leveled to ensure optimal load transfer and structural stability.

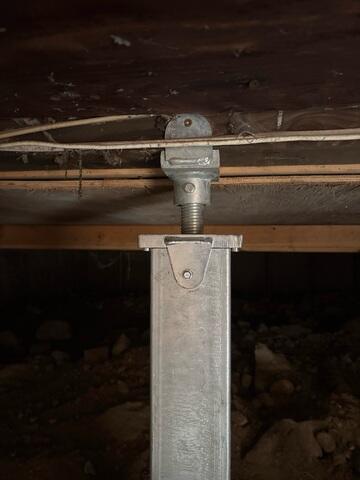

SmartJack Bracket Secured to Main Beam
The adjustable bracket of the SmartJack system allows for precise alignment and secure attachment to the main support beam, ensuring effective load transfer and structural reliability.

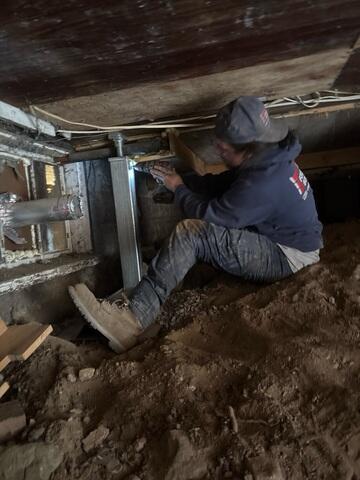

SmartJacks Lifting Sunken Main Beams
The SmartJack units were incrementally raised to deliver targeted support to the main beams. Their adjustable design allows for precise elevation corrections, enabling restoration of the floor to its original level. This process results in permanent stabilization of the structure above the crawl space.

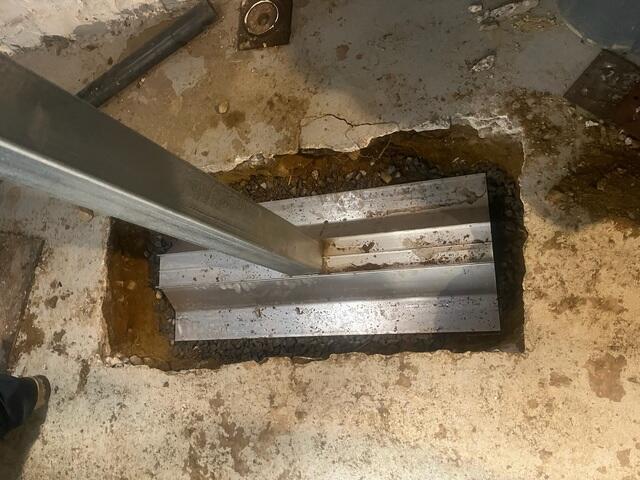

SmartJack Steel Base
For SmartJack installations involving supplemental beams, large steel bearing plates were utilized to enhance load distribution and minimize point load stress on the beam structure.

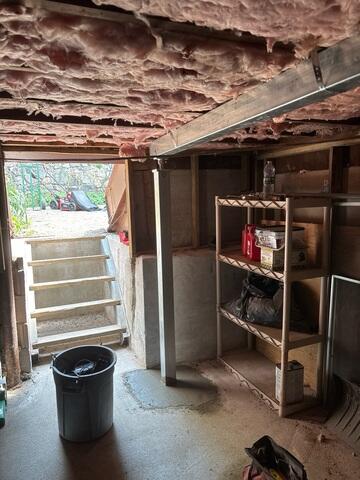

Supplemental Beam and SmartJack Completed Installation
The supplemental beam was securely fastened to the floor joists to ensure proper load integration. SmartJacks were strategically positioned beneath the beam to provide targeted support. Each SmartJack was then anchored into the foundation using concrete, enhancing the overall stability and long-term performance of the system.
