Lack of Floor Support
The crawl space lacked adequate structural support for the joists, resulting in progressive weakening and causing the floors above to sag.

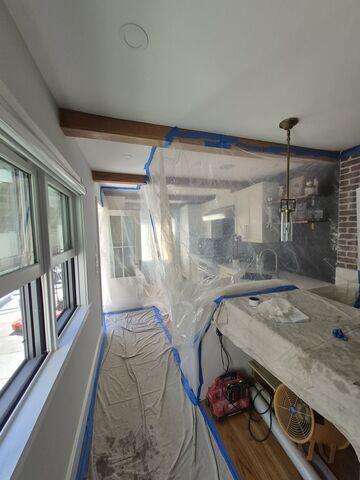

Protecting Personal Belongings
Given the crawl space layout, the kitchen area was at risk of dust intrusion during the installation process. To mitigate this, our crew implemented protective measures by laying down drop cloths and installing plastic sheeting, ensuring the cleanliness and safety of the homeowner's living space. We prioritize safeguarding personal belongings and maintaining a clean work environment throughout every project.

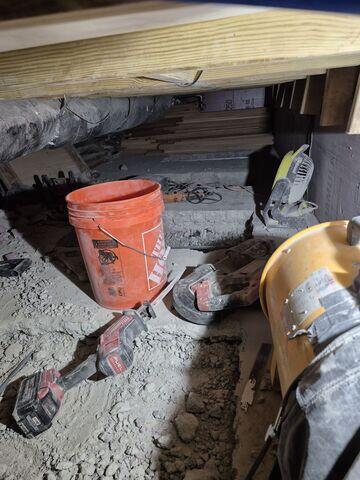

Concrete Removal
Concrete sections were strategically removed to allow for the proper installation of SmartJacks, ensuring direct support beneath load-bearing areas.

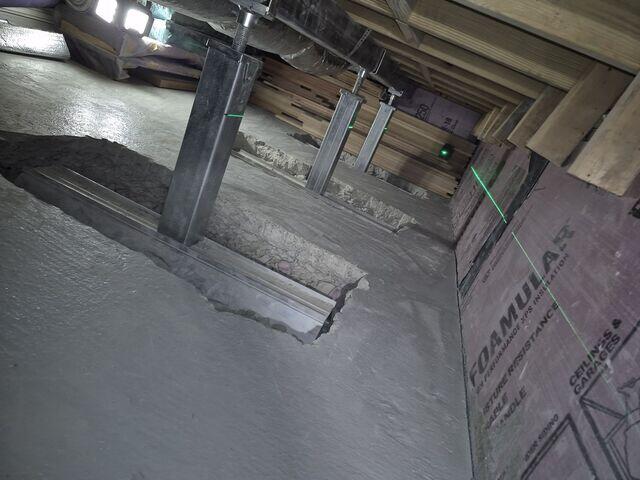

Supplemental Beam and SmartJack Installation
SmartJack base plates were positioned in the excavated areas over a compacted layer of crushed stone to ensure a stable foundation. The adjustable steel posts were then securely connected to the base plates and fastened to a supplemental support beam aligned with the floor joists. The SmartJack system was carefully calibrated to deliver precise load-bearing support, effectively stabilizing and lifting the sagging floors above.

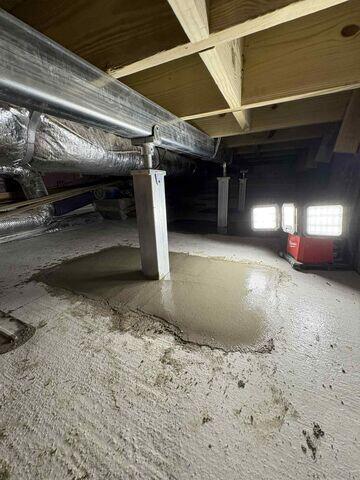

SmartJacks Cemented into Foundation
The SmartJack assemblies were encased in concrete at the base to enhance load distribution and provide additional structural reinforcement within the foundation.
