Foundation Wall Crack
Vertical cracking observed in the garage foundation wall is indicative of differential settlement and potential structural distress. These conditions compromise the wall's load-bearing capacity, placing the overall structural integrity at risk. Immediate stabilization measures are recommended to prevent further deterioration and mitigate the likelihood of progressive failure.

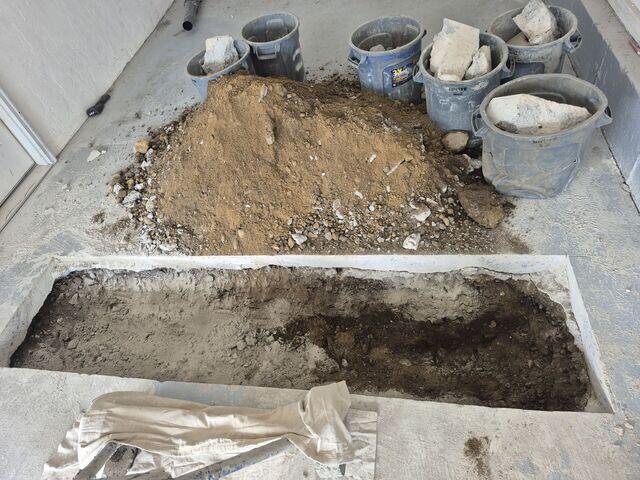

Concrete and Soil Removal
Concrete and surrounding soil were excavated to provide access for installing GeoLock® anchors into stable, load-bearing strata beneath the home. Because the foundation wall was bowing outward, the anchors were strategically positioned below the footing to apply inward tension and restore structural stability.

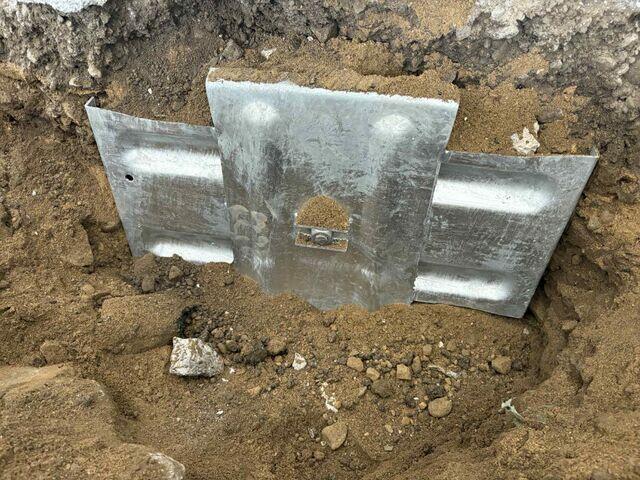

GeoLock Anchors
Galvanized steel rods were drilled through the exterior foundation wall and extended into the excavated zone. Once in place, GeoLock® wall anchors were attached to the rods and secured within stable, load-bearing soil to provide long-term structural reinforcement.

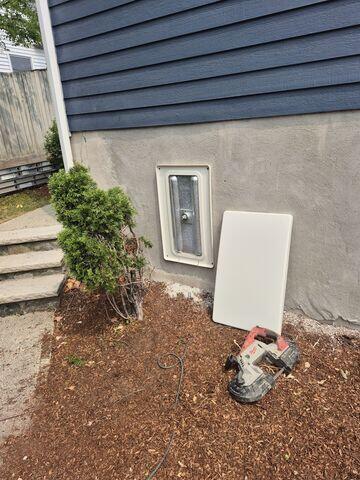

GeoLock Plates
GeoLock® anchor plates were then mounted on the exterior side of the foundation wall and systematically tightened to the steel rods. This process applied controlled tension, effectively transferring load to the stable soil and restoring lateral stability to the wall.

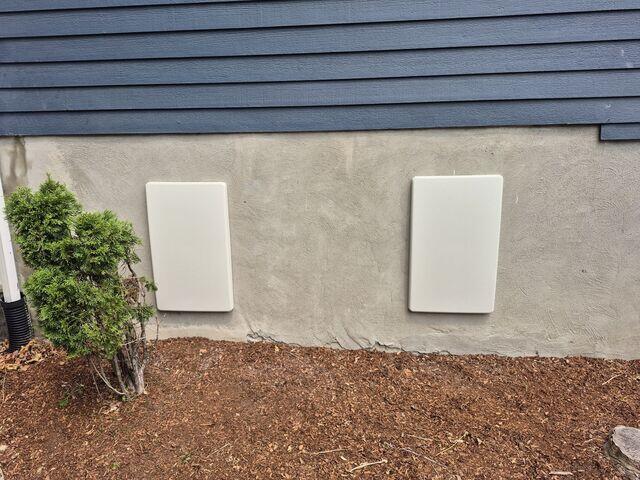

GeoLock Covers
To enhance the finished appearance, GeoLock® Hide-A-Way covers were installed over the anchor plates, providing a clean, low-profile look while maintaining full functionality.

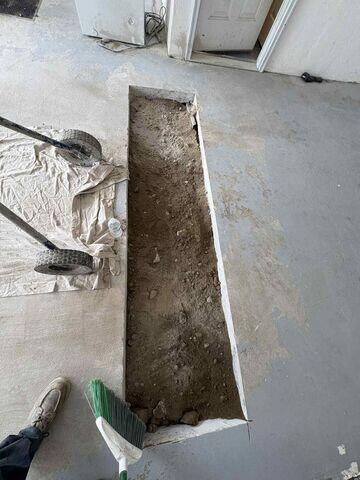

Soil Backfill
The excavated soil was then carefully backfilled and compacted.

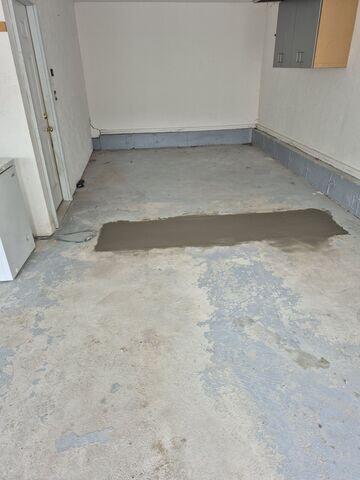

Garage Floor Restoration
Concrete was poured and finished flush with the existing garage floor to restore its original grade and functionality.

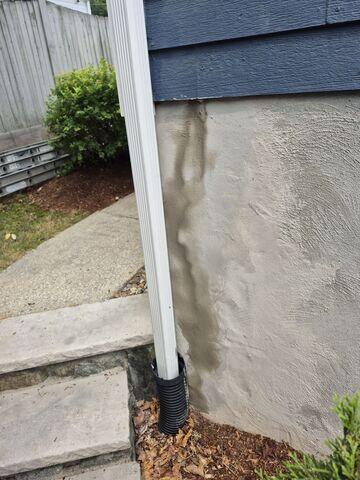

Foundation Wall Crack Repair
NexusPro® sealant was applied to repair and protect the cracks, ensuring long-term flexibility and water resistance. To achieve a uniform finish, a skim coat of universal concrete was then applied over the sealed areas, blending seamlessly with the existing foundation surface.
