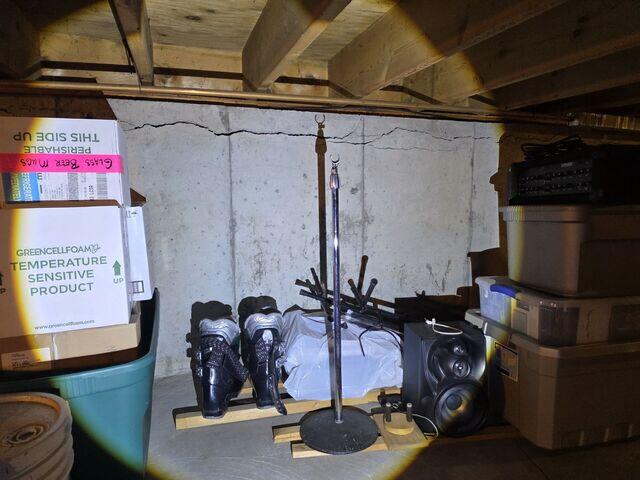

Foundation Wall Crack
The crawl space foundation wall was exhibiting inward deflection of approximately half an inch, resulting in a substantial 20-foot crack spanning the entire wall. This level of movement is a critical indicator of foundation wall failure and, if left unaddressed, could lead to severe structural compromise.

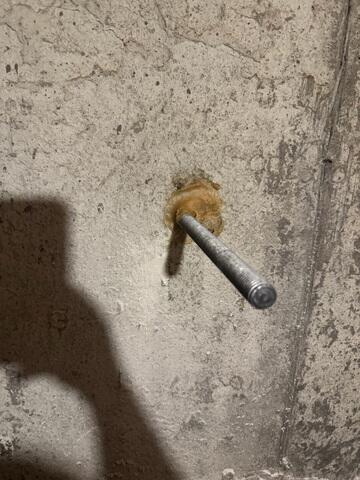

GeoLock Rods
GeoLock® wall anchors were installed by driving steel rods through the crawl space foundation wall and securing them into stable soil beneath the adjacent garage.
GeoLock Anchors
Once the rods were advanced into the trenched area beneath the garage, GeoLock® anchor plates were secured to them. These anchors transfer the load to stable, undisturbed soil, providing the necessary resistance to counteract inward wall pressure and maintain the structural integrity of the foundation.

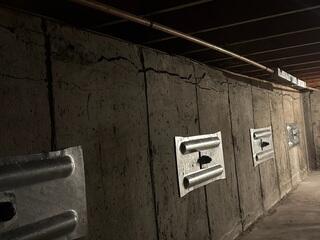

GeoLock Plates
On the interior side of the foundation wall, GeoLock® plates were fastened to the rods and torqued to apply corrective pressure. This process stabilizes the wall immediately and provides the potential for gradual straightening over time, restoring structural integrity.

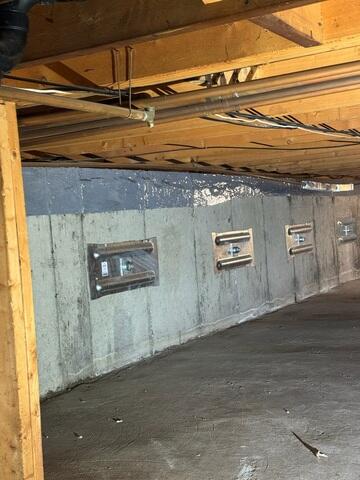

Foundation Crack Repair
The crew applied a professional crack injection to seal the large foundation crack, preventing water intrusion and reinforcing the wall's integrity. Sealing cracks after stabilizing a foundation wall is critical because it eliminates potential entry points for moisture, reduces the risk of further deterioration, and helps maintain the long-term stability of the structure.

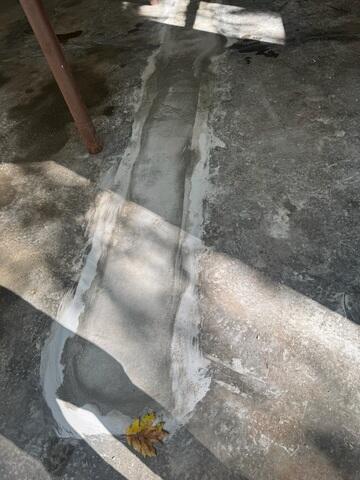

Foundation Repair Backfill
After the GeoLock® installation was completed, the excavated area was carefully backfilled and the surface re-concreted. This process restores the site to its original condition while ensuring the structural integrity and long-term performance of the anchoring system.
