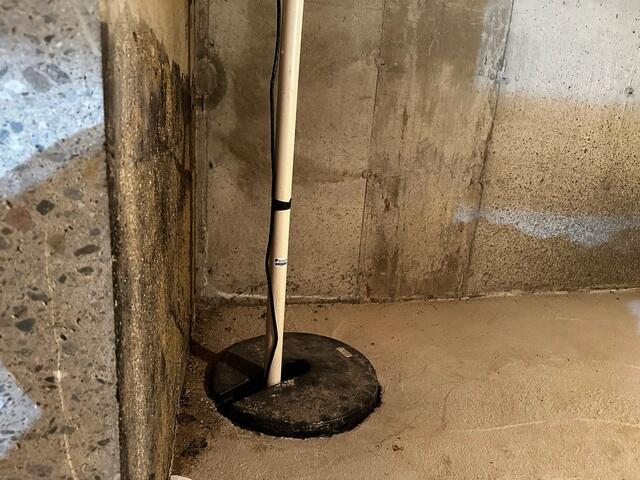

Old Crawl Space Sump Pump
The existing sump pump in the crawl space was insufficient to manage the elevated water table surrounding the home, as clearly demonstrated in the accompanying photo. This inadequate drainage not only allows water intrusion into the crawl space but also contributes to elevated humidity levels in the basement. Prolonged exposure to such conditions can accelerate the deterioration of structural components, including floor joists, if not properly addressed.

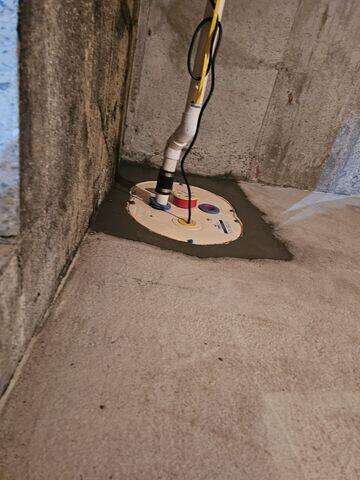

SuperSump Sump Pump in Crawl Space
The older sump pump was removed and replaced with the SuperSump® Sump Pump, which features a high-capacity 1/3 HP cast-iron Zoeller pump capable of pumping up to 2,280 gallons per hour, a durable SuperLiner® sump basin with an airtight lid to block odors and radon, a WaterWatch® alarm system to alert of rising water levels, a CleanPump® stand to prevent clogging, and a reliable check valve to stop backflow-offering superior protection against basement water intrusion and humidity.

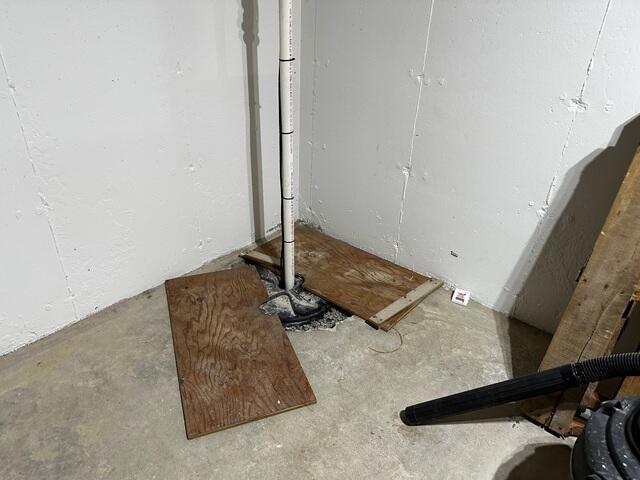

Old Sump Pump in the Basement
The previous sump pump installed in the basement was inadequate for managing the elevated water table, resulting in frequent water intrusion through the cold joint located to the left of the pump. Additionally, the sump system lacked proper sealing, as evidenced by visible crushed stone surrounding the basin. While the wooden cover may have offered minimal protection, the absence of an airtight seal left the basement vulnerable to elevated humidity levels and increased risk of flooding.

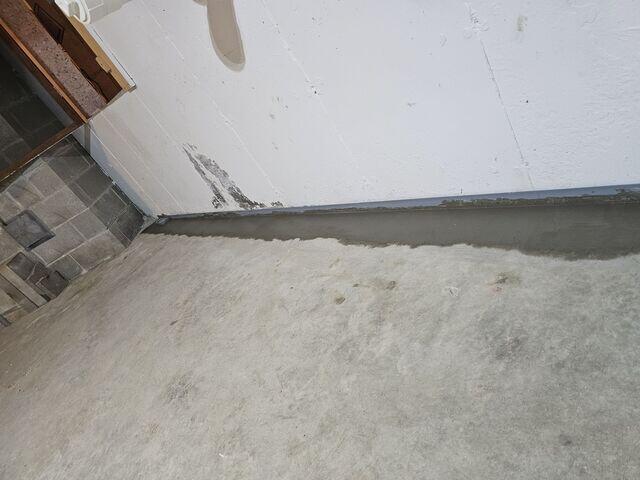

WaterGuard
WaterGuard® was installed along the interior perimeter of the basement to intercept water entering through the cold joint between the wall and floor slab. To accommodate the system, a section of the concrete floor was removed, allowing the drainage channel to be placed directly on top of the foundation footing and surrounded by clean crushed stone. This strategic placement ensures that groundwater is captured before it reaches the basement floor and is efficiently directed to the sump pump for removal, helping to maintain a dry and stable environment.

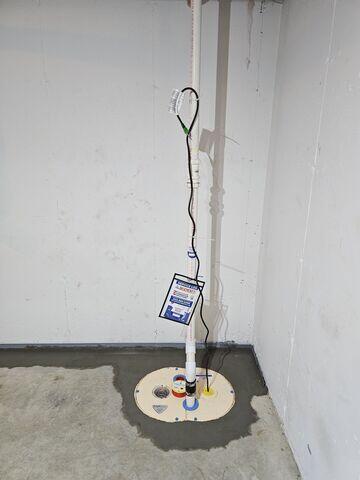

SuperSump in the Basement
The WaterGuard® system integrates seamlessly with the SuperSump® Sump Pump System to provide a comprehensive basement waterproofing solution. Collected water is efficiently channeled through a discharge line that expels it at a designated location away from the foundation, minimizing the risk of re-saturation. To maintain the property's aesthetic appeal, the discharge line is buried beneath the lawn, ensuring both functionality and visual discretion.
Rim Joist Insulation
The homeowner reported experiencing cold floors and noticeable drafts, particularly during the winter months. To improve thermal efficiency and comfort, rim joist insulation was installed using closed-cell polyurethane spray foam. This high-performance insulation creates an air-tight seal that significantly reduces heat loss, prevents cold air infiltration, and enhances the overall energy efficiency of the home.
