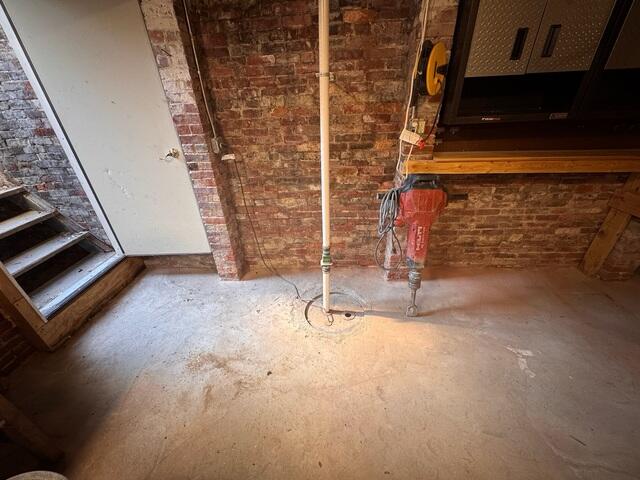

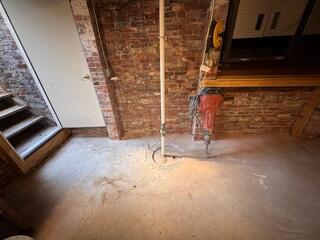

Sump Pump Unable to Capture All Water Seepage
Although the sump pump in the basement was operational, it was insufficient to manage the water during heavy rainstorms. As a result, water infiltration occurred, leading to leaks and the formation of small puddles. Seeking to transform the basement into a fully functional space, the homeowner pursued a comprehensive solution to ensure the area remained permanently dry.

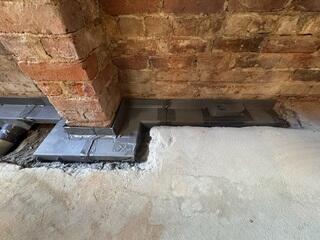

Perimeter Drainage System
To install the WaterGuard® drainage system, a section of concrete was removed along the perimeter of the basement floor. WaterGuard® is a patented, sub-floor drainage solution designed to intercept water at the most common entry point-the wall-floor joint-before it reaches the basement interior. Unlike traditional French drains, WaterGuard® sits above the footing and is engineered with a built-in wall flange to capture seepage from walls. The system channels collected water directly to the sump pump for efficient removal, ensuring a dry and protected basement environment.

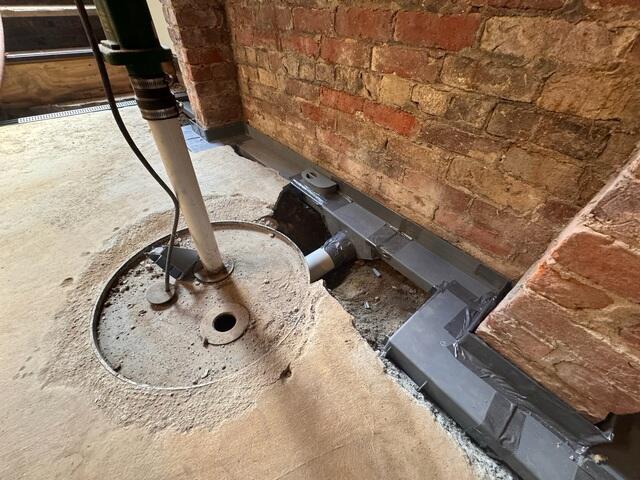

Drainage System Tied into Sump Pump System
The WaterGuard® system integrates seamlessly with the existing sump pump configuration, directing collected water into the sump pump liner for efficient discharge. This connection ensures a continuous drainage path, optimizing water removal and maintaining a dry basement environment.

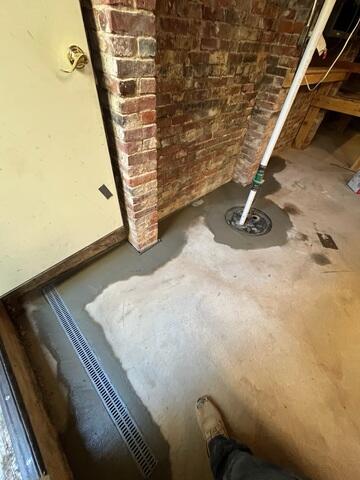

Drainage Systems Concreted into Foundation
A TrenchDrain® surface drainage system was installed at the bulkhead entrance to intercept any water intrusion at this vulnerable point. Following installation, a comprehensive flood test was conducted to verify proper water capture and discharge through the integrated drainage network. Once performance was confirmed, both the WaterGuard® and TrenchDrain® systems were permanently secured beneath a new layer of concrete, restoring the basement floor and ensuring long-term protection against water infiltration.
